Imagine never changing another nitrogen cylinder. No more forklifts moving heavy tanks. No more last-minute calls to your supplier.

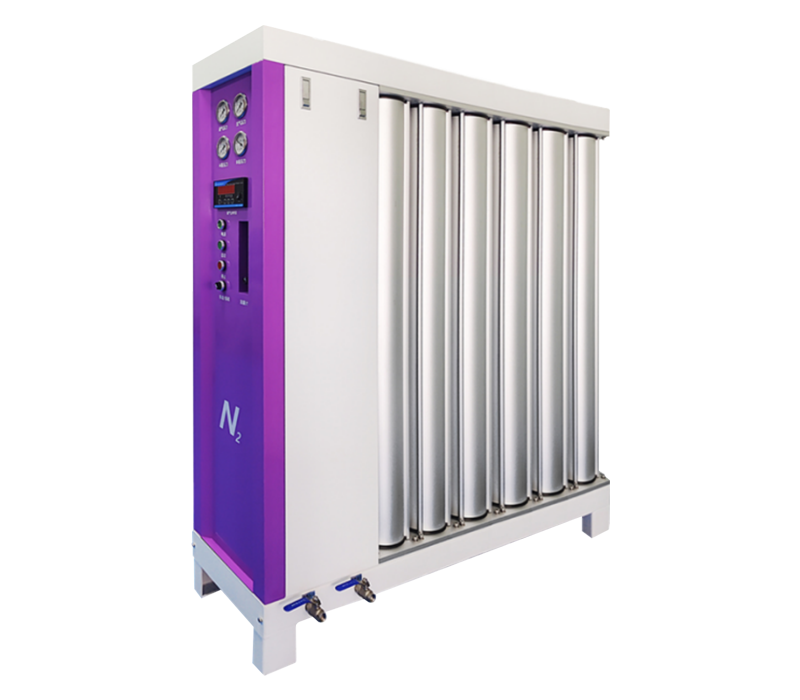

The A-Series makes it real. Plug it in, turn it on, and walk away. Week after week, it just runs – silently, reliably, without asking for attention. Your SMT lines stay oxygen-free. Your wave soldering produces cleaner joints. Your laser welders fire without oxidation. Your food packaging locks in freshness. And when production ramps up, add another module – no re-engineering, no downtime.
That's the A-Series. That's on-site nitrogen done right.
Request a Quote
These models provide a typical return on investment between 6 to 24 months.
Plug-and-play system can be installed easily with minimum cost and interruption.
Compact design allows installation in spaces too small for twin tower generator systems.
Model | Rated Outlet Flow at 116 PSI | 99.999% | 99.99% | 99.9% | 99.5% | 99% | Application |
| JBD-A2 | SCFH | 70.6 | 105.9 | 176.6 | 211.9 | 247.2 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A4 | SCFH | 141.3 | 211.9 | 353.1 | 423.8 | 529.7 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A6 | SCFH | 282.5 | 353.1 | 529.7 | 635.7 | 706.3 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A10 | SCFH | 353.1 | 529.7 | 706.3 | 812.2 | 882.9 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A15 | SCFH | 529.7 | 706.3 | 882.9 | 988.8 | 1059.4 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A20 | SCFH | 706.3 | 882.9 | 1059.4 | 1236.0 | 1412.6 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A25 | SCFH | 882.9 | 1059.4 | 1236.0 | 1342.0 | 1765.7 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A30 | SCFH | 1059.4 | 1412.6 | 1765.7 | 1977.6 | 2118.9 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A40 | SCFH | 1412.6 | 1765.7 | 2118.9 | 2472.0 | 2825.2 | Industrial/Electronics/Medical/Food/Petrochemical |
| JBD-A50 | SCFH | 1765.7 | 2118.9 | 2472.0 | 2684.9 | 3531.5 | Industrial/Electronics/Medical/Food/Petrochemical |
| Recommended inlet air quality (ISO class) | 2.2.1 |
| Minimum inlet air quality (ISO class) | 2.4.1 |
| Minimum operating pressure | 87 psig |
| Maximum operating pressure | 116 psig |
| Burst pressure | >145 psi |
| Nitrogen pressure | ≤14.5–87 psi |
| Recommended operating temperature range | 68 to 77°F |
| Minimum/maximum operating temperature range | 41 to 122°F |
| Supply voltage | 100 - 240 V AC |
| Fuse rating | 3A 'T' |
| Frequency | 50 - 60 Hz |
| Maximum power consumption | 50W |
| IP rating | IP53 (NEMA 2) |
Configuration: Molecular Sieve (CMS280), Nitrogen Filtration Device, Pneumatic Components, Xinje PLC, Shanghai Chang'ai Nitrogen Analyzer (P860), Stainless Steel Fittings, Aluminum Alloy Adsorption Tower.
A nitrogen generator is a device that produces nitrogen gas (N₂) from compressed air. It uses separation methods, such as Pressure Swing Adsorption (PSA) and Membrane Technology, to remove oxygen and other gases, leaving purified nitrogen gas.
Cost savings: Long-term savings are achieved by eliminating the recurring costs of purchasing bottled nitrogen.
Convenience: Continuous on-site nitrogen generation eliminates the need for deliveries and reduces the risk of running out of nitrogen.
Customization: On-demand nitrogen generation allows you to tailor the flow and purity to your needs.
PSA (Pressure Swing Adsorption): Uses carbon molecular sieves to separate nitrogen from other gases in compressed air under varying pressure.
Membrane Technology: This technology uses selective permeable membranes to separate nitrogen from oxygen based on the size of the molecules.
