3 IN 1 Integrated

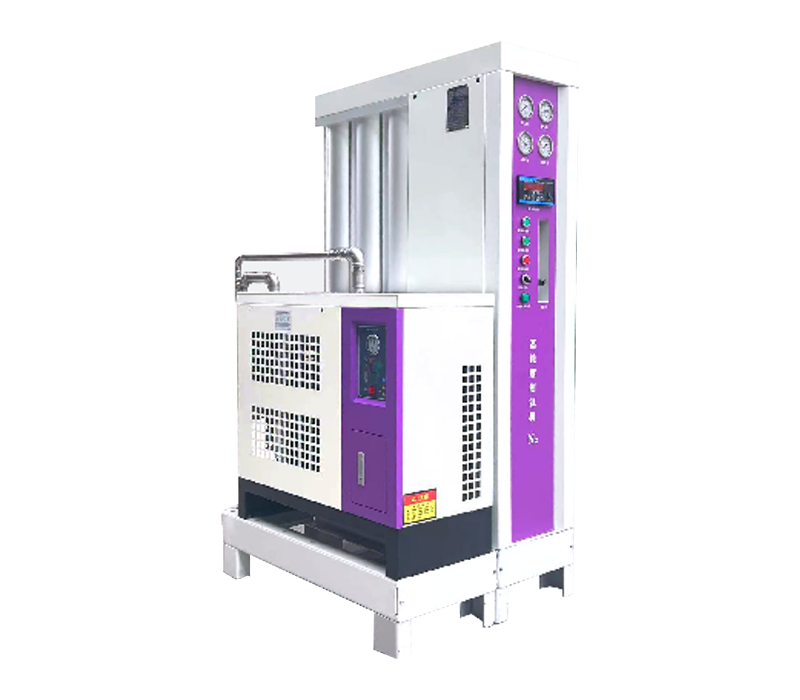

All-in-One Nitrogen Generator, Tank, and Dryer

You open one crate. Inside is a complete nitrogen plant – generator, buffer tank, and refrigerated air dryer, all bolted together and wired up.

No hunting for extra components, no figuring out which pipe goes where. Just one machine, one power cord, one air inlet, and one nitrogen outlet. Roll it into place, connect your compressed air, turn the key, and walk away. The dryer knocks out moisture. The tank smooths out demand.

The generator delivers pure nitrogen at whatever purity you need, 99% to 99.999%. Your shop floor stays clean, your installation is done in an hour, and your production line gets a steady stream of dry, high-purity gas without the usual clutter.

Need more capacity? Add another Integrated module – same all-in-one simplicity, just double the output. That's not just plug-and-play. That's plug-and-forget.

Request a Quote
PURITY
99 – 99.999%
FLOW RAT
106 – 70,620 SCFH
PRESSURE RATING
116 PSI

Features

These models provide a typical return on investment between 6 to 24 months.

Simple Installation

Plug-and-play system can be installed easily with minimum cost and interruption.

Small Footprint

Compact design allows installation in spaces too small for twin tower generator systems.

A-Series Specifications

Specifications

Application

Industrial / Electronics / Medical / Food / Petrochemical, etc.

Type

Modular Nitrogen Generator

Power Supply

220V / 50Hz

Power Consumption

80W

Net Weight

approx. 948 lb (430 kg)

Nitrogen Purity

99 – 99.999% (adjustable)

Inlet Pressure

87 – 116 psi (0.6 – 0.8 MPa)

Burst Pressure

> 145 psi (> 1.0 MPa)

Outlet Nitrogen Pressure

< 14.5 – 87 psi (< 0.1 – 0.6 MPa, controllable)

Dimensions

29.9 × 43.7 × 64.2 in (760 × 1110 × 1630 mm)


Configuration: Molecular sieve (CMS280), oil‑water separator, nitrogen filtration device, pneumatic components, Shanghai Chang’ai nitrogen analyzer (P860)

Frequently Asked Questions

What is a nitrogen generator, and how does it work?

A nitrogen generator is a device that produces nitrogen gas (N₂) from compressed air. It uses separation methods, such as Pressure Swing Adsorption (PSA) and Membrane Technology, to remove oxygen and other gases, leaving purified nitrogen gas.

What are the advantages of having a nitrogen generator over purchasing bottled nitrogen?

Cost savings: Long-term savings are achieved by eliminating the recurring costs of purchasing bottled nitrogen.

Convenience: Continuous on-site nitrogen generation eliminates the need for deliveries and reduces the risk of running out of nitrogen.

Customization: On-demand nitrogen generation allows you to tailor the flow and purity to your needs.

What is the difference between PSA and membrane nitrogen generators?

PSA (Pressure Swing Adsorption): Uses carbon molecular sieves to separate nitrogen from other gases in compressed air under varying pressure.

Membrane Technology: This technology uses selective permeable membranes to separate nitrogen from oxygen based on the size of the molecules.
